6M8.300

Morse Taper to HSK Adapters

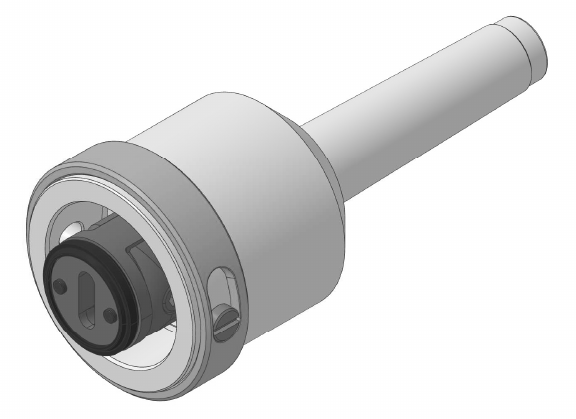

Morse MT3 to HSK-C 63 Adapter

Unlock the precision and modularity of HSK tooling on your standard Morse taper machinery. TAC Rockford’s Morse Taper to HSK Adapters allow you to mount high-performance HSK-A and HSK-C tool holders into receivers equipped with Morse Taper (MT) sockets.

Standard models support DIN 228 tools with metric thread, however inch thread and tang versions are also available upon request.

Because "MT to HSK" is a specialized requirement, off-the-shelf options may not fit every application. TAC Rockford offers full customization services and can design a custom adapter to meet your requirements.

Additional product information can be found on the Details tab below.

Products Details Ask a Question Request a Quote

	For use with	MT Thread	Part Number
Morse MT3 to HSK-C 63	HSK-A/C 63 (not compatible with HSK-E/F)	M12	6M8.303.363.000
Morse MT4 to HSK-C 63	HSK-A/C 63 (not compatible with HSK-E/F)	M16	6M8.304.363.000
Morse MT5 to HSK-C 63	HSK-A/C 63 (not compatible with HSK-E/F)	M20	6M8.305.363.000
Custom Configuration	Contact us		6M8.300.SP

Use Cases
- Legacy Machine Retrofit: Deploy modern HSK holders as a quick change system on older machines with a Morse taper.
- Prototype & Fixturing: Create custom static tool blocks or dedicated fixtures on lathes by converting the tailstock or static blocks to accept quick-change HSK tooling.
- Tail Stock Support: Adapt lathes and grinders with MT tailstocks to quick change HSK tooling.

For more information regarding this item (Morse Taper to HSK Adapters) or other items, fill out the form below or contact our office directly:

Telephone: 815-962-5600
Fax: 815-962-4600
Location: 304 North Main St, Suite 104, Rockford, IL 61101-1101 USA
Email: infο@ΤΑCRοckfοrd.cοm

Add Comment		Alias
Full name
Position/Title
Company
Telephone
Fax
Email
Mailing Address

Receive a quote or more information on:

Questions or comments:

How did you hear about us?
Other:

Your preferred method of contact

HSK-A Reducing Adapters

For tanged Morse taper tools DIN 228-B. Available for HSK-A 50, 63, 80, 100.

HSK-A Morse Taper Holders

Available for HSK-A 50, 63, 80, 100

Overview: Morse Taper Gauges

Morse Taper Spindle Runout Arbors

Morse taper runout arbors offer a quick and easy way to verify correct spindle runout for machines with Morse tapers. Included is a threaded spanner nut to facilitate removable from the Morse spindle.

Arbors are manufactured to standard DIN 229 with a metric thread. Contact us for different sizes or customized versions.
