Steep Taper Tool Changer Alignment Gauges

Tool changer alignment carrying case

Zoom Enlarge Image

Tool changer alignment carrying case

Available for Steep Taper 30, 40, 50, and 60. Includes padded storage case.

Tool changer alignment carrying case (Click image to enlarge)

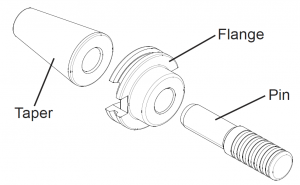

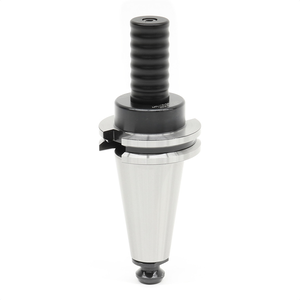

Steep Taper Tool Changer Alignment Gauges (Click image to enlarge)

PDF Data Sheet: Steep Taper Tool Changer Alignment Gauges (440.800)

Print Data Sheet

Tool changer alignment gauges verify proper alignment between the tool changer spindle. Improper alignment can result in abnormal wear on the spindle interface, tool changer, and tool holder. In addition, mis-clamping and dropped tools can also occur.

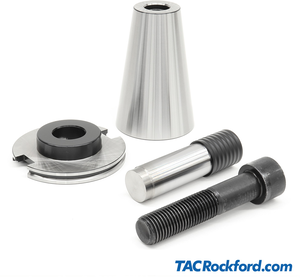

Steep taper sets include taper and flange, alignment pin, extraction screw, and a padded carrying case.



Steep Taper Tool Changer Alignment Gauge Instruction Manual
Steep Taper Tool Changer Alignment Gauge Instruction Manual

The tool changer alignment gauge is designed to verify correct alignment of the machine spindle to the tool changer. See PDF for full instruction manual.

Details PDF (440.800M)
