681.004.1405

Laip HSK-A Great Power Collet Chucks

For tools with Plain cylindrical straight shank

For tools with Plain cylindrical straight shank. Balanced according to ISO 1940-1 up to 10,000 rpm. Available for HSK-A 63, 80, 100.

PDF Data Sheet: Laip HSK-A Great Power Collet Chucks (681.004.1405)

  Products  Details  Ask a Question  Request a Quote

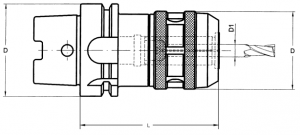

Taper (D) Length (L) D1 Part Number
HSK-A 63   110  20            681.00414050404
HSK-A 63   130  32            681.00414050406
HSK-A 80   135  32            681.00414050506
HSK-A 100   140  32            681.00414050606

• Maximum circular deviation between outer taper and collet housing <= 0.003 mm.
• In order to achieve best results we recommend to use cylindrical tools with h6 tolerance. When tool shank diameter is 'd1 max.' , there is no need of any collet.
• Balanced according to ISO 1940-1 up to 10,000 rpm. We have latest methods for dynamic balancing up to 50,000 rpm.
• Coolant tube to be ordered separately.
