292-HHF

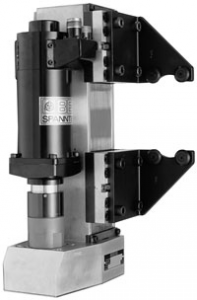

BERG EHHF and HHHF Handling Systems

The modular handling systems EHHF and HHHF are used as heavy duty grippers in various areas of machine tool and plant engineering.

PDF Data Sheet: BERG EHHF and HHHF Handling Systems (292-HHF)

The modular handling systems EHHF and HHHF are used as heavy duty grippers in various areas of machine tool and plant engineering. These systems are suitable for use in applications requiring large gripping strokes under rough operating conditions and where high standards of operating safety are required.
