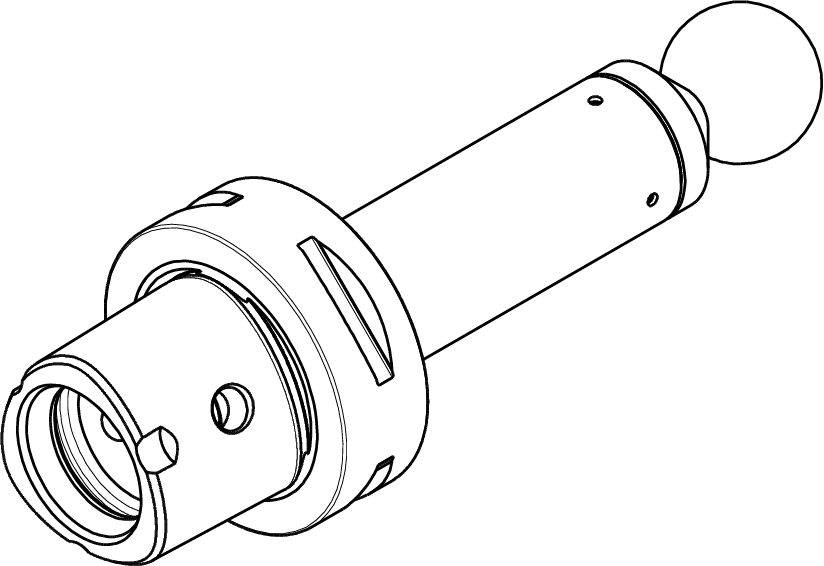

PSC / PSK Taper Standard Ball-End Runout Test Arbors
Precision Spindle Analysis for 5-Axis Machining
Ensure the highest levels of accuracy and performance from your machine tools with the TAC Rockford PSC (Polygonal-Shank Taper) Ball End Test Arbor. Specifically designed for the verification of 5-axis machining centers, this precision instrument is essential for maintaining spindle health and positioning integrity.
Key Features:
PSC Taper Standard: Built to the ISO 26623 Standard for seamless integration and accurate seating in your PSC spindle.
5-Axis Positioning Accuracy: Primarily used for precisely checking the positioning accuracy of 5-axis spindles, especially the Rotary Tool Center Point (RTCP).
Spindle Runout Verification: Functions as a highly accurate runout test arbor to quickly and easily check that your machine spindle is running true.
Versatile Ball End: The precision ball end is ideal for establishing a consistent and repeatable touch-off point from the spindle face, a critical step for machine setup and calibration. It also provides a shorter alternative to standard runout bars when required.
Precision and Reliability: TAC Rockford's commitment to quality ensures a reliable instrument for periodic performance checks, verification after a machine crash, or installation/relocation.
Included Certificate of Accuracy: Each arbor comes with a certificate of accuracy to confirm its adherence to strict quality standards.
| Taper | Length (L) | Ball Dia. (D) | Runout | Standard | Part Number | |||
|---|---|---|---|---|---|---|---|---|
| PSC 32 / C3 | 150mm | 30mm | <0.01mm | ISO 26623-1 | 466.C03.000.000 | |||
| PSC 40 / C4 | 150mm | 30mm | <0.01mm | ISO 26623-1 | 466.C04.000.000 | |||
| PSC 50 / C5 | 150mm | 30mm | <0.01mm | ISO 26623-1 | 466.C05.000.000 | |||
| PSC 63 / C6 | 150mm | 30mm | <0.01mm | ISO 26623-1 | 466.C06.000.000 | |||
| PSC 80 / C8 | 150mm | 30mm | <0.01mm | ISO 26623-1 | 466.C08.000.000 | |||
| Special Configuration | Contact us with your requirements | 466.C00.SP |
