681.003.1331

Laip Steep Taper (DIN) to Steep Taper (ISO) Reducing Adapters

For tools with DIN 2080, DIN 69871 or MAS 403 BT tapers

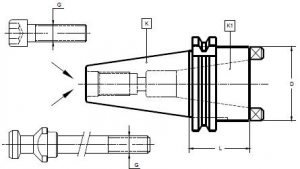

Laip Steep Taper (DIN) to Steep Taper (ISO) Reducing Adapters (Click image to enlarge)
Laip Steep Taper (DIN) to Steep Taper (ISO) Reducing Adapters (Click image to enlarge)

For tools with Steep Taper DIN 2080, DIN 69871, or MAS 403 BT.

PDF Data Sheet: Laip Steep Taper (DIN) to Steep Taper (ISO) Reducing Adapters (681.003.1331)

DIN 69871 Taper (K) Steep Taper (K1) D G Length (L) Part Number
Steep Taper 50     Steep Taper 40  70  M-16    51    681.00313310402

• Maximum circular deviation between K and K1 <= 0.008
• Pull stud necessary to use Steep Taper (DIN 2080) shanks
• Pull stud necessary to use Steep Taper (DIN 69871) and MAS 403 BT shanks
• Pull studs are supplied on request
