601.500

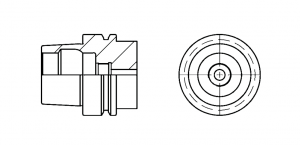

Hollow Taper Shank Type E

Hollow Taper Shanks for High-Speed Cutting (HSC) acc. to the Pre-Standard DIN 69 893 Part 5 and 6 - with Gripper Groove

For use with high-frequency spindles and wood working machines. Hollow Taper Shanks for High-Speed Cutting (HSC) acc. to the Pre-Standard DIN 69 893 Part 5 and 6 with Gripper Groove.

PDF Data Sheet: Hollow Taper Shank Type E (601.500)

  Products  Details  Ask a Question  Request a Quote
HSK-E Tool Holder Blanks
HSK-E Tool Holder Blanks

TAC Rockford stocks HSK-E32, HSK-E40, HSK-E50, and HSK-E63 blanks in a variety of diameters and lengths. Other sizes are available
- contact us with your requirements.

Details PDF (659.500)

Taper L (mm) D (mm) f1 (mm) f2 (mm) d1 (mm) d9 (mm) Standard Part Number
HSK-E25   100  25  10  20  25  16.4  DIN 69893 / ASME B5.62   659.525.025.100
HSK-E25   100  48  10  20  25  20  DIN 69893 / ASME B5.62   659.525.048.100
HSK-E32   100  32  20  36  32  26  DIN 69893 / ASME B5.62   659.532.032.100
HSK-E40   100  40  20  35  40  34  DIN 69893 / ASME B5.62   659.540.040.100
HSK-E50   100  50  26  42  50  42  DIN 69893 / ASME B5.62   659.550.050.100
HSK-E63   100  63  26  42  63  53  DIN 69893 / ASME B5.62   659.563.063.100
HSK-E25...80 Custom Size               Contact us with your requirements  659.500.SP

• For use with high-frequency spindles and wood working machines.
• Rotationally symmetrical, without driving grooves.
• Torque transmission via friction grip.
• Central coolant supply via coolant tube is possible.
