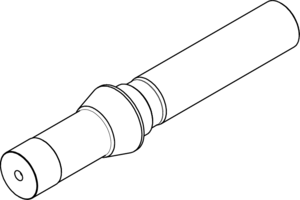

TF and BS Swiss-Style Collet Runout Test Arbors
TAC Rockford workholding spindle runout test bars provide a definitive standard for verifying the accuracy of 5C, TF, BS, and other collet spindles.
Designed for precision collet chucks, Swiss-style lathes, indexing heads, and grinding fixtures, a runout test bar provides an immediate, reliable baseline to diagnose spindle health, troubleshoot vibration issues, and certify machine alignment.
Additional product information can be found on the Details tab below.

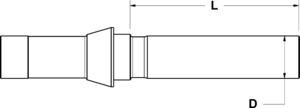

| Swiss Collet Type / Size | Length (L) | Diameter (D) | Part Number | |||||
|---|---|---|---|---|---|---|---|---|
| 5C | 200 mm | 32 mm | 487.05C.000.000 | |||||
| TF10 | 70 mm | 10 mm | 487.TF10.000.000 | |||||
| TF15 | 70 mm | 15 mm | 487.TF15.000.000 | |||||
| TF16 | 70 mm | 15 mm | 487.TF16.000.000 | |||||
| TF20 | 100 mm | 21 mm | 487.TF20.000.000 | |||||
| TF25 | 100 mm | 25 mm | 487.TF25.000.000 | |||||
| TF30 | 100 mm | 32 mm | 487.TF30.000.000 | |||||
| TF43 | 100 mm | 46 mm | 487.TF43.000.000 | |||||
| TF48 | 100 mm | 50 mm | 487.TF48.000.000 | |||||
| BS20 | 100 mm | 27 mm | 487.BS20.000.000 | |||||
| BS38 | 100 mm | 42 mm | 487.BS38.000.000 | |||||
| Other size or special configuration | Contact Us | 487.WHC.SP |
Key Features:
- Ultra-Precision Tolerance: Precision ground to a maximum runout error of ≤ 0.003mm (3 microns / 0.00012"), ensuring that any deviation read on your indicator is from the machine, not the bar.
- Hardened Gauge Steel: Constructed from premium case-hardened steel to resist wear, nicks, and thermal expansion during handling, ensuring years of reliable service.
- Certification Included: Comes with a signed certificate of accuracy traceable to international standards.
Applications:
- Spindle Qualification: Quickly verify if a lathe spindle bearing is worn or if the headstock is misaligned.
- Crash Recovery: Immediate "go/no-go" check after a machine crash to determine if the spindle is bent.
- Preventative Maintenance: Schedule regular checks to catch runout drift before it results in scrapped parts or broken carbide tooling.
For more information regarding this item (TF and BS Swiss-Style Collet Runout Test Arbors) or other items, fill out the form below
or contact our office directly:
Telephone: 815-962-5600
Fax: 815-962-4600
Location: 304 North Main St, Suite 104, Rockford, IL 61101-1101 USA
Email: infο@ΤΑCRοckfοrd.cοm
