HSK Coolant Tubes

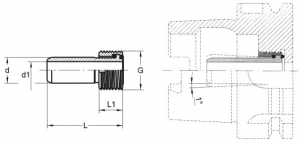

HSK Coolant Tubes (Click image to enlarge)
HSK Coolant Tubes (Click image to enlarge)

Available for HSK-A 32, 40, 50, 63, 80, 100, 125, 160

PDF Data Sheet: HSK Coolant Tubes (699.100)

  Products  Details  Ask a Question  Request a Quote
Taper L G d d1 L1 Part Number
HSK-A/E 32   26  M10x1  6  3.5  5.5      699.100.132
HSK-A/E 40   29.5  M12x1  8  5  7.5      699.100.140
HSK-A/E 50   33  M16x1  10  6.4  9.5      699.100.150
HSK-A/E 63   36.5  M18x1  12  8  11.5      699.100.163
HSK-A/E 63 Stainless Steel   36.5  M18x1  12  8  11.5      699.100.163.ST
HSK-A/E 80   40  M20x1.5  14  10  13.5      699.100.180
HSK-A 100   44  M24x1.5  16  12  15.5      699.100.190
HSK-A 125   48  M30x1.5  18  14  17.5      699.100.192
HSK-A 160   52  M35x1.5  20  16  19.4      699.100.196

HSK Coolant Tube Wrenches
HSK Coolant Tube Wrenches

Available for HSK-A 32, 40, 50, 63, 80, 100, 125, 160

Details PDF (699.110)

Taper L D Part Number
HSK-A/E 32   120  13            699.110.132
HSK-A/E 40   120  13            699.110.140
HSK-A/E 50   125  15            699.110.150
HSK-A/E 63   145  17            699.110.163
HSK-A/E 80   145  20            699.110.180
HSK-A/E 100   165  22.5            699.110.190
HSK-A/E 125                 699.110.192
HSK-A/E 160                 699.110.196

HSK Coolant Tube Plugs
HSK Coolant Tube Plugs

Threaded to fit HSK toolholders. Ideal for closing or sealing-off coolant-through on HSK tools, such as gauges or no-coolant tools.

Details PDF (699.115)

Taper L T H Part Number
HSK-A 32   6  M10x1            699.115.132
HSK-A 40   8  M12x1            699.115.140
HSK-A 50   10  M16x1            699.115.150
HSK-A 63   12  M18x1            699.115.163
HSK-A 80   14  M20x1.5            699.115.180
HSK-A 100   16  M24x1.5            699.115.190
HSK-A 125   18  M30x1.5            699.115.192
HSK-A 160   20  M35x1.5            699.115.196

• Coolant tubes are for use with HSK-A, HSK-E, and HSK-F.

• Design meets dimensions of DIN 69893 and ISO 12164-1 and is fully replaceable with other coolant tubes.

• Coolant tubes are flexible and can easily move into the proper position for smooth contact. For example, for HSK-A 63 tubes, only 17 N force is required to deflect the tube one degree.

• Coating reduces friction and seal wear.
