280.006

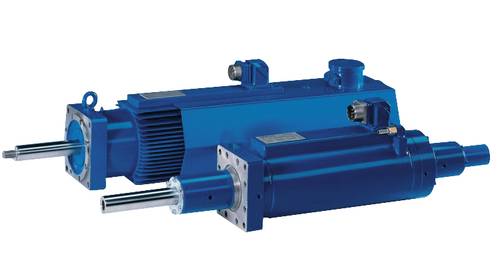

Oswald LINS Cylindrical Linear Motors
Direct electric drive, high acceleration, extremely low noise, without reduction gear, no play at direction reversal, free of lateral forces, no rotor losses, and with NdFeB magnets. Contact us to adapt the electrical and mechanical design to your specific requirements.
PDF Data Sheet: Oswald LINS Cylindrical Linear Motors (280.006)
Features • Direct electric drive
• High acceleration
• Extremely low noise
• Without reduction gear, no play at direction reversal
• Free of lateral forces
• No rotor losses
• With NdFeB magnets
• Compact, robust, high force density
• Low inertia, dynamical
• Long life
• Made in Germany
Technical Specifications • Force at continuous duty: 100-20,000 N
• Acceleration: up to 200 m/s-squared
• Stroke: up to 220 mm
• Cooling: air or fluid
• Protection class: IP54
For more information regarding this item (Oswald LINS Cylindrical Linear Motors) or other items, fill out the form below
or contact our office directly:
Telephone: 815-962-5600
Fax: 815-962-4600
Location: 304 North Main St, Suite 104, Rockford, IL 61101-1101 USA
Email: infο@ΤΑCRοckfοrd.cοm
