451.CS0

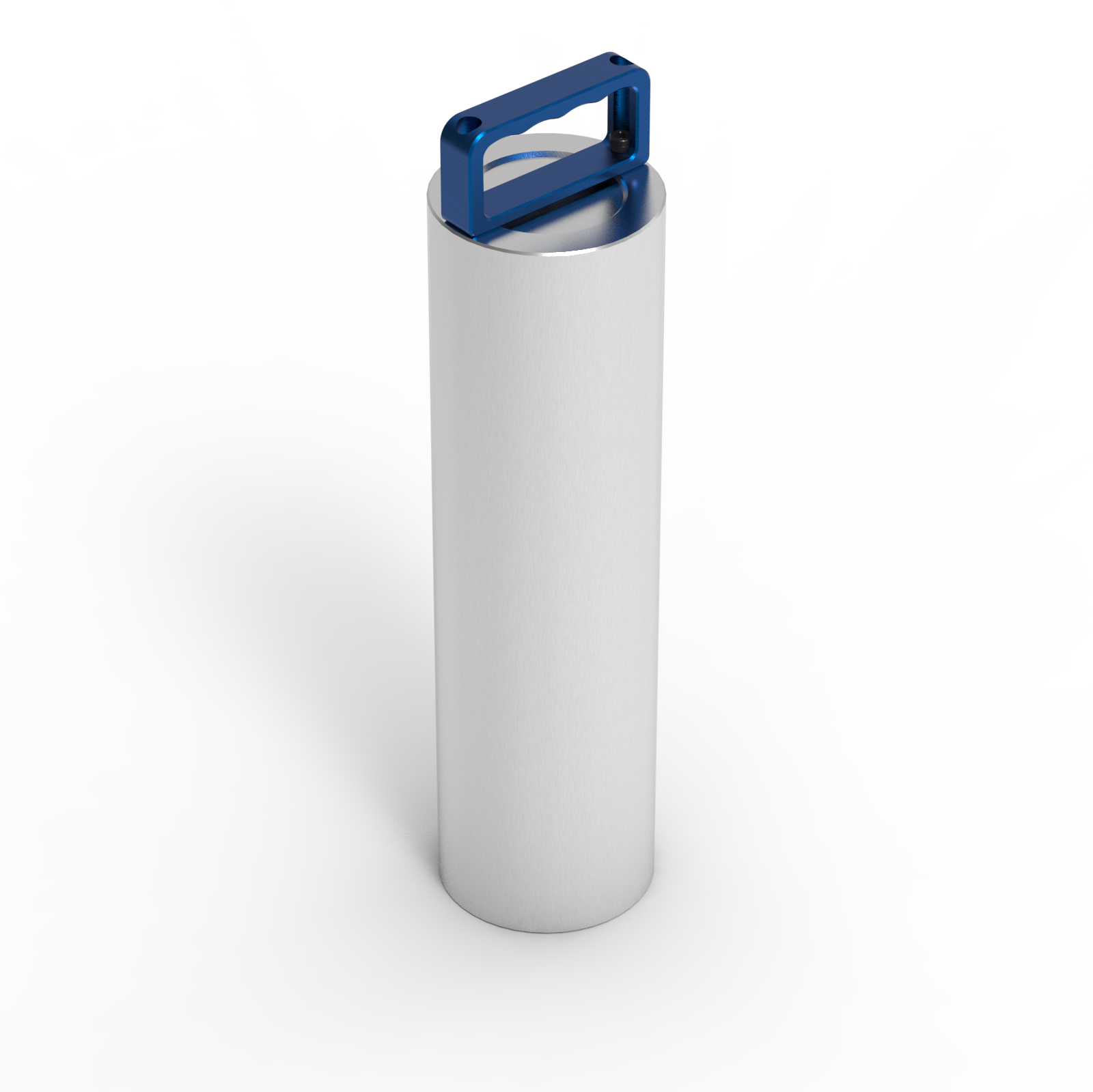

Master Cylindrical Square (Steel)
TAC Rockford's Precision Master Cylinders are essential tools designed to serve as a reliable reference for verifying the perpendicularity and straightness on critical machine axes on high-precision machine tools and Coordinate Measuring Machines (CMMs).
Key Features:
- High Precision Standard: Engineered to provide an accurate and repeatable datum for rigorous machine verification and calibration.
- Durable Construction: Built for sustained use in demanding industrial environments.
- Versatile Sizing: Available in a range of standard dimensions to suit various machine envelopes and gauging requirements.
| Cylindrical Square (Steel) | H (mm) | D (mm) | Perpendicularity (mm) | Cylindricity (mm) | Weight (lb) | Part Number | ||
|---|---|---|---|---|---|---|---|---|
| 160 x 60 | 160 | 60 | 0.002 | 0.002 | 8 | 451.CS0.160.060 | ||
| 250 x 80 | 250 | 80 | 0.003 | 0.003 | 22 | 451.CS0.250.080 | ||
| 360 x 100 | 360 | 100 | 0.003 | 0.003 | 38 | 451.CS0.360.100 | ||
| 500 x 120 | 500 | 120 | 0.005 | 0.005 | 54 | 451.CS0.500.120 | ||
| 600 x 140 | 600 | 140 | 0.005 | 0.005 | 84 | 451.CS0.600.140 | ||
| Custom Configruation | Contact us | 451.CS0.SP |
For more information regarding this item (Master Cylindrical Square (Steel)) or other items, fill out the form below
or contact our office directly:
Telephone: 815-962-5600
Fax: 815-962-4600
Location: 304 North Main St, Suite 104, Rockford, IL 61101-1101 USA
Email: infο@ΤΑCRοckfοrd.cοm
