681.012.1912

Laip HSK-F Shrink Fit Chucks (Standard Length)

For Carbide, Cermet and HSS tool shanks with tolerance h6

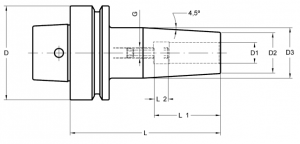

Laip HSK-F Shrink Fit Chucks (Standard Length) (Click image to enlarge)
Laip HSK-F Shrink Fit Chucks (Standard Length) (Click image to enlarge)

For Carbide, Cermet and HSS tool shanks with tolerance h6. Available for HSK-F 63. Other sizes and profiles available on request.

PDF Data Sheet: Laip HSK-F Shrink Fit Chucks (Standard Length) (681.012.1912)

Taper (D) Length (L) D1 Part Number
HSK-F 63   80  3            681.01219121403
HSK-F 63   80  4            681.01219121404
HSK-F 63   80  5            681.01219121405
HSK-F 63   80  6            681.01219121406
HSK-F 63   80  8            681.01219121408
HSK-F 63   85  10            681.01219121410
HSK-F 63   90  12            681.01219121412
HSK-F 63   90  14            681.01219121414
HSK-F 63   95  16            681.01219121416

• Maximum circular deviation between K and D1 <= 0.003 mm.
• For tool shank tolerance of h6.
• For Carbide, Cermet and HSS tool shanks according to DIN 6535 form HA and DIN 1835-1 form A.
• Balanced according to ISO 1940-1 up to 25,000 rpm G 2.5.
• We have latest methods for dynamic balancing up to 50,000 rpm.
• With built-in bored through stop screw.
• Other sizes and profiles on request.
