499.215.113080

Carrying Case R8 Taper Spindle Runout Test Arbor

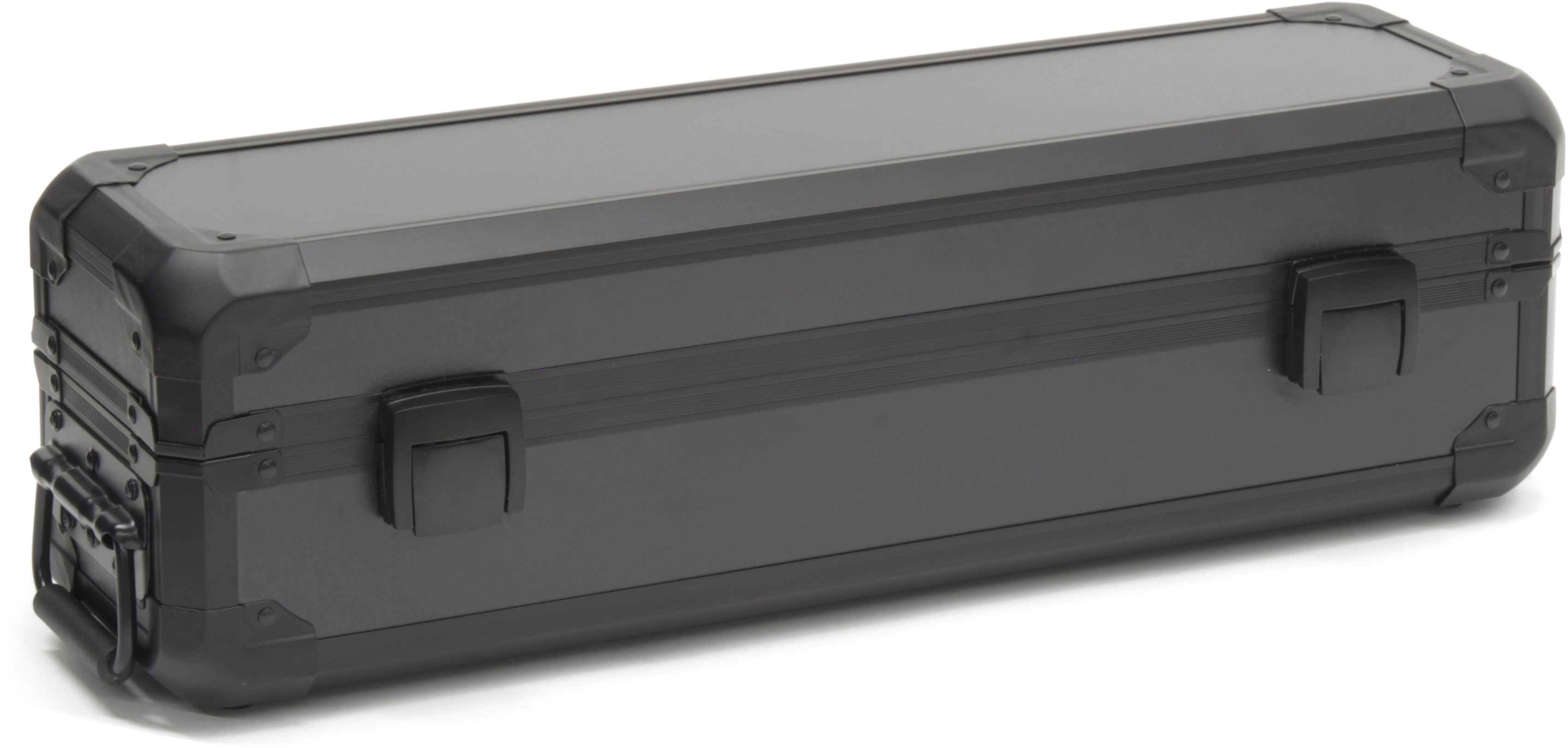

Runout Arbor Case (Aluminum)

Standard R8 spindle runout test arbor with inch retention thread. Runout <=0.003 micron (0.00012 inch)

Taper	L	D						Part Number
R8 Spindle Taper	260mm	31.75mm [1.25in]						465.R08.000.000
Carrying Case				Aluminum Horizontal Case				499.215.113080

For more information regarding this item (Carrying Case R8 Taper Spindle Runout Test Arbor) or other items, fill out the form below or contact our office directly:

Telephone: 815-962-5600
Fax: 815-962-4600
Location: 304 North Main St, Suite 104, Rockford, IL 61101-1101 USA
Email: infο@ΤΑCRοckfοrd.cοm

Add Comment		Alias
Full name
Position/Title
Company
Telephone
Fax
Email
Mailing Address

Receive a quote or more information on:

Questions or comments:

How did you hear about us?
Other:

Your preferred method of contact

PSC / PSK Spindle Runout Test Arbors

Made to the ISO 26623 Standard. Maximum runout error 0.003mm / 3 micron / 0.00012”. A certificate of accuracy is included. Storage are cases not included.

Steep Taper Spindle Runout Test Arbors

-Maximum runout error 0.003mm / 3 micron / 0.00012 inch
-Cylindricity ≤ 0.002mm / 2 micron / 0.00008 inch
-Carrying cases are not included (see below for case options).
-A certificate of accuracy is included. Traceable certificates available; contact us for details.
-Contact us for other lengths, tapers, and other special requirements.

KM Spindle Runout Test Arbors

- Maximum runout error 0.003mm [0.00012 in.]

- Carrying cases are not included. Visit www.tac.us/runoutcases for available case styles (Data Sheet 465.006).

- A certificate of accuracy is included. Traceable certificates available; contact us for details.

- Contact us for other lengths, tapers, and other special requirements.

* ISO 26622 runout arbor tapers are compatible with machines using TS, XMZ (Mazak Integrex), and ATC. Flange may not be suitable for use with automatic tool changers.

R8 Taper Spindle Runout Test Arbor

Standard R8 spindle runout test arbor with inch retention thread.

Runout <=0.003 micron (0.00012 inch)

Steep Taper Standard Ball-End Runout Test Arbors

Ball end spindle runout test arbors are designed checking positioning accuracy of 5-axis machines, but can also be used in place of a standard runout test bars when a shorter length is required or for a touchoff point from the spindle face (ball end is ideal for this purpose).

Spindle Runout Test Arbors

-Maximum runout error 0.003mm / 3 micron / 0.00012 inch
-Cylindricity ≤ 0.002mm / 2 micron / 0.00008 inch
-Carrying cases are not included. Visit www.tac.us/runoutcases for available case styles (Data Sheet 465.006).
-A certificate of accuracy is included. Traceable certificates available; contact us for details.
-Contact us for other lengths, tapers, and other special requirements.

HSK Standard Ball-End Runout Test Arbors

HSK Spindle Runout Test Arbors

TAC Rockford's HSK Spindle Runout Test Arbors are the essential high-precision instrument for verifying the accuracy of your machine tool spindles. This critical gauge provides a fast, reliable, and definitive way to diagnose alignment and runout issues that directly impact part quality and tool life.

- Ultra-High Precision: Typically guaranteed radial runout of 0.003mm (3 microns / 0.0001") or better, ensuring the highest level of diagnostic accuracy.

- Manufactured from premium, hardened alloy steel and precision ground for stability and longevity.

- Each arbor is supplied with an individual Certificate.

- Contact us for other lengths, tapers, and other special requirements.

- Carrying cases are not included. Available case options listed below.

Steep Taper Dual Contact Runout Test Arbors

Compatible with Big-Plus® steep taper spindles.

Carrying Cases for Steep Taper Runout Arbors

TAC Rockford runout arbor cases are specifically designed to protect your precision spindle runout test arbors. These cases feature high-density, custom-cut foam interiors that secure the arbors. They ensure your critical measurement tools are shielded from dirt, damage, and impact, maintaining their accuracy and readiness for preventative maintenance.
