465.K00

KM Spindle Runout Test Arbors

Available for KM40, KM50, KM63, and KM100. Contact us for custom arbors.

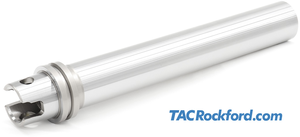

KM Spindle Runout Test Arbors (Click image to enlarge)
KM Spindle Runout Test Arbors (Click image to enlarge)

PDF Data Sheet: KM Spindle Runout Test Arbors (465.K00)

Print Data Sheet

• Maximum runout error 0.005mm / 5 micron / 0.0002 inch. Contact us for availability on ultra-precision 0.001mm runout arbors.
• Carrying cases are not included. Visit www.tac.us/runoutcases for available case styles (Data Sheet 465.006).
• A certificate of accuracy is included.
• Contact us for other lengths, tapers, and other special requirements.


Taper Length Diameter Part Number
KM32 Runout Arbor   70  32            465.K32.000.000
KM40 Runout Arbor   80  40            465.K40.000.001
KM50 Runout Arbor   Contact us              465.K50.000.001
KM63 Runout Arbor   340  50            465.K63.000.000
KM63 Runout Arbor   120  63            465.K63.000.001
KM6350 Runout Arbor   300  50            465.K65.000.000
KM80 Runout Arbor   350  50            465.K80.000.000
KM80 Runout Arbor   120  80            465.K80.000.001
KM100 Runout Arbor   340  50            465.K90.000.000
KM100 Runout Arbor   120  100            465.K90.000.001
KM10080 Runout Arbor   300  50            465.K98.000.000
